What is Azure Stack HCI?

Azure Stack HCI is a hyperconverged infrastructure (HCI) solution from Microsoft that runs Windows and Linux virtual machines, containerized workloads, and the storage they run on, all in one integrated system.

It runs on-premises while maintaining a live connection to Azure for cloud-based services, centralized management, and monitoring.

This solution fits organizations that want to modernize their data centers while maintaining local control. It runs on a virtualized foundation and supports software-defined storage and networking.

In this article, we’ll discuss how Azure Stack HCI works, its key features, deployment options, and where it fits best.

Azure Stack HCI in Cloud Computing

Azure Stack HCI helps you run virtual machines or containers on your own servers while staying connected to the Azure cloud. It follows a hybrid approach, so part of your setup stays on-premises, and the rest extends to the cloud when needed.

It works closely with Azure services such as Microsoft Entra ID (formerly Azure Active Directory), Azure Monitor, Azure Backup, and Azure Site Recovery. You can manage everything from Windows Admin Center or Azure Arc. This gives you a single place to control both on-prem and cloud resources.

Another advantage is flexibility with hardware. You can use certified nodes or even reuse your existing servers if they meet the specs. This way, you modernize step by step, without rebuilding everything from scratch.

Security is already part of the system. Azure Stack HCI includes features like shielded VMs, encryption for virtual machines, and network micro-segmentation. These options protect workloads and meet compliance standards.

In simple terms, Azure Stack HCI gives IT teams a way to keep control of local infrastructure while getting cloud benefits such as monitoring, backup, and cost optimization.

For deeper visibility into hybrid environments, LogicMonitor’s Azure Monitoring for Hybrid Environments gives you a single view across Azure, on-prem, and multi-cloud resources. It connects performance data, alerts, ownership, and brings them into one platform.

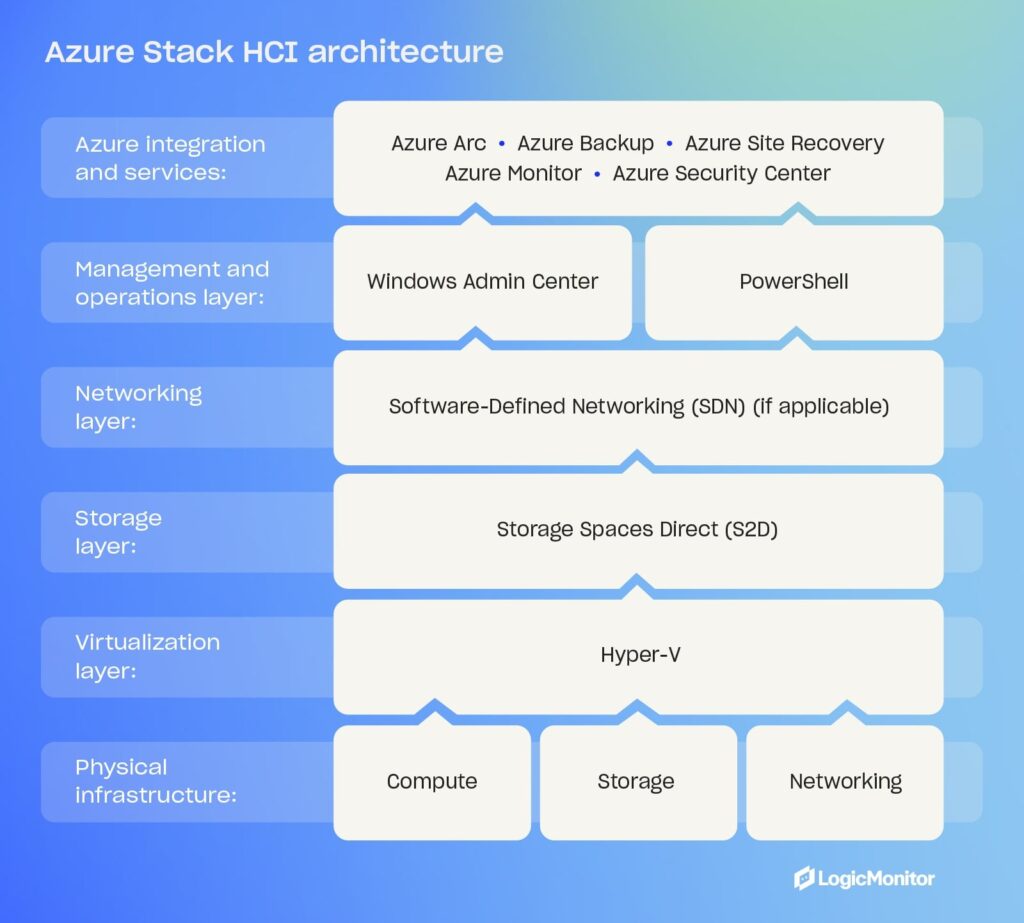

How Azure Stack HCI Works

Azure Stack HCI runs on certified hardware, where each node contributes to the cluster’s shared resources. Once deployed, the system behaves like one integrated unit.

Administrators manage the platform through Windows Admin Center, a centralized console built for hybrid infrastructure. From here, virtual machines can be deployed. Storage volumes can be configured based on available capacity. Virtual networks are also defined and managed through the same interface.

So, if an IT administrator wants to deploy a new instance of Microsoft SQL Server, they can create a new virtual machine using storage from the Azure cloud. Similarly, you can quickly deploy a Docker application in a new Linux instance.

Underneath, Storage Spaces Direct handles disk pooling across the nodes. It adds fault tolerance at the storage layer, so data stays accessible even during hardware failures.

Networking is virtualized using Software-Defined Networking. This helps traffic control, segmentation, and policy enforcement without relying on physical switches.

At the core is the Azure Stack HCI operating system—a purpose-built version of Windows Server. It supports virtual workloads and hybrid scenarios, which makes it easier for teams to automate tasks using PowerShell or Azure CLI.

Deployment depends on validated systems listed in the official Azure Stack HCI hardware catalog. Some organizations also repurpose existing servers, provided they meet technical specs like RDMA support and compatible CPUs.

For high availability, clusters can stretch across multiple sites. This setup protects workloads running in remote offices or critical edge environments.

Ongoing management tasks like patching, monitoring, and capacity planning run natively within the stack. Azure Stack HCI fits well in setups that need strong on-prem control, while still taking advantage of cloud-connected features.

Why Choose Azure Stack HCI?

Azure Stack HCI is designed for organizations that need modern infrastructure with cloud integration without giving up control of on-premises systems. It brings the benefits of HCI cloud computing into real-world IT environments.

Here are some of its key advantages:

• Hybrid cloud infrastructure: Supports on-premises workloads with direct integration into the Azure ecosystem. Workloads stay local, but services like monitoring, backup, and identity can be extended through the cloud.
• Edge computing support: Runs virtual machines and containers closer to where data is created. This is quite useful for latency-sensitive applications at the edge or in remote branches.
• Azure service integration: Connects to Azure-native tools like Azure Monitor, Microsoft Entra ID, Azure Backup, and Azure Security Center. You don’t need any extra configuration.
• Cost control with hardware reuse: Works with validated hardware or existing servers (if compatible). The Azure Stack HCI cost model follows a subscription format, which helps with planning and avoids large upfront investments.
• Security and compliance built-in: Supports features like shielded VMs, network encryption, and secure boot. It aligns with compliance standards across healthcare, finance, and government sectors.
• Scalable HCI stack: Add nodes to scale out the cluster. This is ideal for workloads that grow over time or require seasonal burst capacity.
• Performance-focused architecture: Uses Storage Spaces Direct for high-throughput storage and Software-Defined Networking (SDN) for flexible, policy-based network management.

Key Features of Azure Stack HCI

Microsoft Azure Stack HCI is now a part of Azure Local and includes the essential building blocks of any HCI stack. It adds features that support hybrid workloads, DevOps teams, and infrastructure modernization.

Let’s explore its key features in detail:

Virtualization with Hyper-V and Containers

Azure HCI supports virtualization through built-in Hyper-V. Each node can run multiple Windows or Linux virtual machines on top of shared physical resources. These VMs behave like independent workloads that IT teams can configure, patch, and monitor using standard Microsoft management tools.

For containerized workflows, Azure Stack HCI connects with Azure Kubernetes Service (AKS). Containers can run directly on the cluster, or be managed from Azure using Azure Arc, depending on how the environment is set up. This helps DevOps teams standardize deployments and shorten setup times.

Software-Defined Infrastructure

Storage and networking in Azure Stack HCI do not rely on traditional appliances. The system defines both layers in software, using policies and automation scripts. Admins can provision virtual networks, set up routing rules, and carve out storage volumes directly from Windows Admin Center.

The configuration stays flexible, even as demand gets higher. Teams can script deployments or use Infrastructure-as-Code patterns to bring consistency across multiple clusters. This removes the need to buy new hardware for every change in workload requirements.

Edge Deployment Capabilities

Azure Stack HCI works well in distributed environments. Many companies use it in edge locations where workloads need to run close to the source of data such as branch offices, warehouses, or industrial sites.

By connecting each cluster to Azure Arc, admins can manage resources at the edge alongside other on-prem or cloud systems. This helps with system consistency while keeping latency low for local applications.

Security in Azure Stack HCI

Security is built into the foundation of Azure Stack HCI. The operating system supports Secure Boot, TPM 2.0, and UEFI-based protections out of the box. These controls protect the hardware layer from tampering during startup.

Windows Admin Center includes security configuration tools for daily tasks. Admins can enable BitLocker encryption, activate SMB encryption, and use Defender Antivirus to scan workloads running on the cluster.

Shielded VMs and Credential Guard are also supported. These features isolate sensitive data and block unauthorized access from within the system itself.

Microsoft Azure Stack HCI aligns with compliance frameworks like PCI, HIPAA, and FIPS. This gives you a way to deploy secure infrastructure that meets internal policies and regulatory standards without relying on separate security stacks.

Performance in Azure Stack HCI

Performance tuning in Azure Stack HCI happens at both hardware and software levels. The system uses Storage Spaces Direct to pool local disks across nodes. This setup gives fast read/write access without relying on external SANs.

For workloads that require faster access to large files, the platform supports NVMe-based drives. These disks reduce bottlenecks during data-heavy tasks like analytics or logging.

Admins can also assign GPU resources to virtual machines using partitioning features. This supports AI models, ML training jobs, or any workload that benefits from hardware acceleration.

Monitoring tools are built into the stack. Windows Admin Center shows real-time metrics for CPU usage, memory, disk I/O, and network throughput. These insights help teams identify underused or overloaded resources, optimize workload placement, and avoid performance bottlenecks before they affect production.

Azure Stack HCI Management and Deployment Options

Azure Stack HCI offers multiple ways to deploy and manage infrastructure depending on the organization’s tools, size, and cloud resources.

Management Interfaces and Tools

The most common method is through Windows Admin Center, which provides a centralized interface to configure and manage clusters, virtual machines, storage, and networking. It’s designed for day-to-day operations and is widely used in both small and mid-sized deployments.

Larger or more complex environments may require additional tools:

• Azure Portal: For environments already connected to Azure, admins can manage registered HCI clusters directly through the Azure web interface. This includes monitoring, backup, security policies, and identity controls.
• PowerShell: Scripting through PowerShell supports automation, bulk operations, and integration with CI/CD workflows. It’s often used during provisioning or configuration changes.
• Deployment Scripts: These are prebuilt or custom templates supported by Azure Stack HCI to automate setup across many nodes. They standardize deployments at scale.
• System Center or VMware vCenter: Organizations already invested in virtualization platforms can integrate those tools with Azure Stack HCI. This reduces the learning curve and keeps core processes consistent during migration.

What You Need Before Deployment

Before deploying an Azure HCI cluster, gather the following information for each node:

• Server name and domain
• Computer account and organizational unit (OU)
• Static IP addresses and VLAN ID
• RDMA networking configuration
• Site names (used for multi-site or high-availability cluster deployments)

Steps to Deploy Azure Stack HCI

After validating hardware and planning your deployment, follow this step-by-step approach to deploy Azure Stack HCI:

1. Initial setup: Install the Azure Stack HCI OS on each physical node. Configure IP settings and verify network connectivity.
2. Cluster creation: Use Windows Admin Center to create a new HCI cluster. Run validation checks to confirm the nodes meet all requirements.
3. Azure registration: Register the cluster with Azure. Connect it to Azure Arc for hybrid management and visibility in the Azure Portal.
4. Service integration: Set up services like Azure Monitor, Azure Backup, and Microsoft Entra ID to support operations across cloud and on-prem infrastructure.

Deployment Best Practices

To avoid deployment issues and configuration bottlenecks, follow these key practices:

• Define infrastructure and storage requirements in detail before starting.
• Test on a smaller environment before deploying across the full datacenter.
• Keep firmware, drivers, and the Azure Stack HCI OS fully updated.
• Document the entire setup to simplify future scaling or troubleshooting.
• Use identical server models across the cluster to avoid hardware inconsistencies.

Use Cases for Azure Stack HCI

Azure Stack HCI is used across different industries and workloads. Its flexibility makes it suitable for organizations that need local performance, cloud-connected services, or hybrid deployment models.

Let’s look at some of its most common use cases.

Private Cloud for Regulated Industries

Organizations in sectors like healthcare, finance, and government use Azure HCI to build secure, private cloud environments.

Sensitive data such as electronic health records (EHR), financial transactions, or customer information can stay on-premises to meet compliance requirements while still benefiting from cloud-connected services like backup and monitoring.

High-Performance Computing (HPC)

Microsoft Azure Stack HCI can run compute-intensive workloads by pooling local resources into virtual clusters. It supports scenarios like weather simulations, genomic research, or engineering design.

Researchers and analysts can launch compute nodes quickly without relying on centralized data centers.

Content Delivery at the Edge

Media and content companies use Azurestack HCI at the edge to serve video, images, and static content with low latency. Workloads run close to the end user, which helps with streaming performance and reduces the load on central systems.

This model supports regional caching and localized data delivery.

Branch Office and Remote Work Support

Organizations with distributed teams or branch locations deploy Azure HCI clusters on-site. With virtualized networking and hybrid identity services, remote workers can easily access internal apps as if they were on the corporate network.

This setup reduces backhaul traffic and improves user experience across sites.

DevOps and Test Environments

Azure Stack HCI is a strong fit for teams running the latest development pipelines as it supports CI/CD workflows by providing fast provisioning of virtual machines and container-based environments.

You can automate build and test deployment stages using PowerShell, Azure Arc, or integrated tools in Windows Admin Center.

Monitor Azure Stack HCI with LogicMonitor

Ready to connect your infrastructure with Azure services? LogicMonitor’s Azure Monitoring Solutions help teams track performance, manage resources, and extend visibility across hybrid environments.
