DNS redundancy: Architecture options, tradeoffs, and monitoring best practices

The Domain Name System (DNS) resolves domain names into the records used to locate your services.

Before a user can establish an uncached connection, a resolver has to translate a name into an answer, and only then does any of your infrastructure get a chance to respond.

Many lookups never reach your authoritative servers at all, because resolvers cache prior answers and reuse them until they expire. Even so, DNS sits upstream of everything else, so when resolution fails, users hit an error page even though your servers, databases, and CDNs are healthy.

That dependency carries more weight in 2026 than it did a decade ago.

Modern delivery spans multiple clouds, CDN-heavy edge networks, third-party SaaS, and sprawling API ecosystems, and each of those paths starts with a DNS lookup. DNS also remains a frequent, high-impact attack target.

What is DNS redundancy?

DNS redundancy, more precisely authoritative DNS redundancy, means running your authoritative DNS across independent failure domains so a single failure can’t take your domain offline. To talk about it clearly, a few distinctions matter.

• Authoritative servers vs. recursive resolvers: Authoritative servers hold the definitive records for your domain. Recursive resolvers, run by ISPs and public providers, query those authoritative servers on behalf of users and cache the answers. Redundancy here is about your authoritative side.
• A nameserver vs. a DNS provider: A nameserver is a logical authoritative endpoint, identified by an NS hostname, that may be served by many physical instances at once, commonly through anycast. A provider operates a whole managed network of these endpoints, often across many locations. Adding nameservers isn’t the same as adding providers.
• Server redundancy vs. failure-domain diversity: Multiple servers inside one provider protect you from a single server dying. Diversity across providers and networks protects you when an entire provider or network path fails.
• Data plane vs. control plane: The data plane answers live queries. The provider’s management and control plane is what you use to publish and change records. Each can fail on its own.

Both single-server risk and single-provider risk are real. A resilient design accounts for both.

How DNS resolution and redundancy actually work

When a resolver needs an answer for your domain, it works through your delegated authoritative nameservers. It selects among those servers and, if one doesn’t respond, retries against the others, independently of any record’s time to live (TTL). This caching and retry behavior comes from the core DNS specifications, IETF RFC 1034 and RFC 1035.

TTL governs something different. It sets how long a resolver reuses a cached answer and how quickly a record change propagates once you publish it. TTL does not control how fast a resolver switches between your authoritative servers or providers, so it doesn’t determine authoritative-provider failover speed. Failover between authoritative servers depends on resolver selection and retry, not on record TTL.

Geographic and network placement of those authoritative servers is its own concern. IETF RFC 2182 covers the selection and placement of secondary authoritative servers, and recommends spreading them across diverse locations and networks. It also notes that resolvers tend to prefer better-performing servers, though placement diversity is its principal subject.

Redundancy builds on that retry behavior, but the value comes from independence, not raw server count. Two nameservers on the same network, in the same provider, sharing the same control plane, still share a single failure domain. Real redundancy adds authoritative capacity that can fail on its own, so a problem in one place doesn’t take down the rest.

Architecture options and tradeoffs

Three architectures come up most often. Think of them as tiers of independence rather than equal peers: each adds a failure domain the one before it leaves exposed, and each adds operational work.

Baseline: one managed provider, multiple NS records across anycast locations

This is the normal managed-DNS starting point. Your provider runs your zone across several nameservers, usually on an anycast network spanning many locations. It handles individual server and PoP failures well and keeps operations simple, because you manage one control plane and one feature set.

What it covers: single server or PoP loss within the provider.

What it does not cover: a provider-wide authoritative data-plane outage, a provider control-plane incident, a network or ASN problem on that provider, or a configuration error, since all of those affect one shared failure domain. A credential or account compromise at that provider is also a single point of failure.

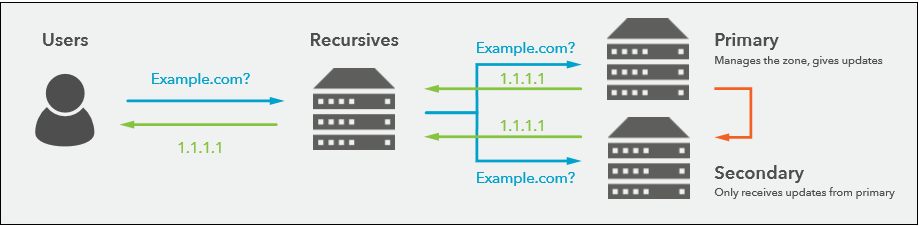

Multi-provider using standard secondary DNS (zone transfer)

One provider holds the primary (master) copy of your zone, and a second provider runs a secondary that receives the zone through zone transfers. A full transfer (AXFR) copies the entire zone; an incremental transfer (IXFR) sends only the changes since the last update. The secondary answers queries alongside the primary, so if the primary’s authoritative service goes offline, the secondary keeps resolving from the records it holds.

What it covers: single server or PoP loss, and a second authoritative data plane and network or ASN through the second provider.

What it partly covers: provider control-plane failure, since queries survive on the secondary while updates pause until the primary’s control plane returns.

What it does not cover on its own: a configuration error or credential compromise at the primary, which can propagate to the secondary through the transfer. Standard records transfer cleanly, but provider-specific features and record types only carry over if the secondary can receive and reproduce them, so feature parity is worth verifying rather than assuming.

(Source: Technical Brief: Improve Performance and Reliability with Supplemental DNS, Dyn)

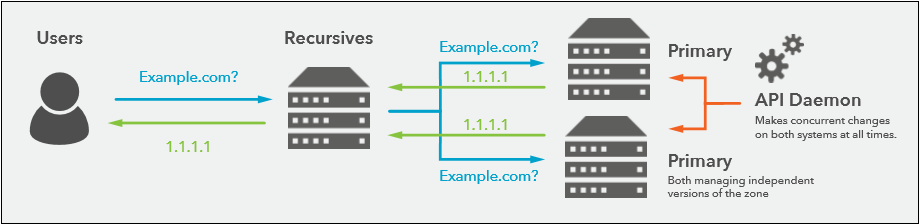

Multi-provider using independently managed primaries

Both providers act as primaries and answer queries independently, with records pushed to each provider through APIs or automation rather than a zone transfer. Each provider can use its own advanced features, including traffic steering, and neither depends on the other’s control plane to receive updates.

What it covers: single server or PoP loss, two independent authoritative data planes, two control planes, and network or ASN diversity across providers.

What it can cover with discipline: configuration errors, if you validate changes before they reach each provider.

What still needs attention: a credential or automation compromise, since the pipeline that pushes to both providers can become a shared failure domain if it isn’t isolated. This tier also raises the operational bar.

You now manage configuration drift between two systems, DNSSEC signing and key management across providers, automation to keep records aligned, auditability of who changed what, rollback when a change goes wrong, and change ordering so updates land consistently on both sides.

(Source: Technical Brief: Improve Performance and Reliability with Supplemental DNS, Dyn)

Secondary DNS depends on distinct SOA timers that govern how the secondary tracks the primary. REFRESH sets how often the secondary checks the primary for a newer zone. RETRY sets how soon it tries again after a failed check.

EXPIRE sets the outer limit: if the secondary cannot complete a refresh before the EXPIRE interval elapses, it stops answering authoritatively for the zone rather than serving increasingly stale records indefinitely.

The SOA EXPIRE field is defined in RFC 1035. The EDNS EXPIRE option in RFC 7314 lets a secondary convey the remaining expiry time to downstream secondaries that transfer from it.

More independence brings more resilience and more work. The baseline tier fits many sites well. Secondary DNS adds a genuine second failure domain with modest overhead. Independent primaries earn their complexity when the cost of downtime clearly outweighs the added operational load.

A decision framework for choosing a tier

Pick a tier by weighing a few factors together rather than defaulting to the most redundant option.

• Cost of downtime: If minutes of failed resolution map to lost revenue or breached SLOs, the case for a second provider grows. If an outage is a minor inconvenience, the baseline tier may be enough.
• Update and change complexity: Frequent or intricate record changes raise drift risk across independent primaries. A secondary keeps changes in one place and transfers them.
• Reliance on proprietary traffic steering: If you depend on one provider’s geo or latency-based routing, independent primaries let you keep it, at the cost of configuring and syncing that policy on each side.
• DNSSEC requirements: Signing across providers needs a coordinated key-management model, so factor that in before committing to a multi-provider tier.
• Operational maturity: Independent primaries assume you have automation, validation, and rollback in place. Without them, a secondary is the safer step up.

Redundancy alone does not equal resilience

Two providers on paper can still fail together in practice, because redundancy at the authoritative layer doesn’t remove the dependencies both providers sit on top of. Common ones include:

• Shared registrar and TLD: Both providers depend on the same registrar account and the same top-level domain infrastructure.
• Parent delegation: The NS records at the parent zone point resolvers to your providers. If they’re wrong, redundancy below them doesn’t matter.
• DNSSEC DS records at the parent: A stale or incorrect DS record at the parent breaks validation for the whole domain, across both providers.
• Shared IaC pipelines: A single automation pipeline that pushes to both providers can push the same mistake to both.
• Shared credentials and secrets: Reused API tokens or accounts turn a credential compromise into a multi-provider event.
• Shared cloud dependencies or routing: Overlapping upstream networks, peering, or cloud regions can degrade both providers at once.
• Shared monitoring infrastructure: If the same system watches both providers and it goes down, you lose visibility into both.

Multi-provider DNS does not help if the parent delegation, the registrar account, the DNSSEC DS records, or the shared automation is misconfigured or compromised, because those sit above or beside both providers.

Differing ASNs reduce the odds of a shared network event, but they don’t guarantee independence on their own, since the providers can still share peering, upstreams, or cloud routing.

Picture a checkout service behind two DNS providers. One provider’s automation stalls, and a batch of updated records never reaches its authoritative servers. Users start hitting whichever provider a resolver happens to prefer, so some reach the new endpoints and some land on retired ones.

Responders see a confusing mix of working and failing sessions with no obvious pattern. Monitoring that only asks “is DNS up?” shows green, because both providers are answering, just not with the same records.

The business impact is concrete: failed checkouts, blocked logins, unreachable APIs, missed SLAs and SLOs, and eroded customer trust while the drift goes unnoticed.

How to monitor redundant DNS

Monitoring is what turns a redundant design into a resilient one. Two complementary test types cover the picture, and you need both.

Direct authoritative checks: Query every provider and nameserver directly and compare what each one returns. Check the expected answers, the authoritative (AA) flag, DNSSEC behavior, resolution latency, and response codes. For primary/secondary architectures, also compare SOA serials to confirm that zone transfers are keeping the secondary current. For independently managed primaries, compare the expected RRsets or configuration state instead, because each provider may generate SOA serials differently. Side-by-side, these checks can flag stale or divergent records, failed synchronization, or a nameserver that has stopped answering authoritatively.

End-to-end traversal checks: Follow the full lookup path the way a real resolver does. Validate parent delegation and glue records, resolver behavior, and the DNSSEC chain of trust from the parent DS record down to your signed zone. These checks catch problems that live above the authoritative layer.

Direct checks can all pass while delegation is broken: Every provider can return the right answer when queried directly, yet users still fail because the parent points resolvers somewhere wrong or the DNSSEC chain doesn’t validate. That’s why both perspectives matter: one confirms each provider is healthy, the other confirms the path to them works.

Monitor during deployment, not just in steady state: Validate both providers before you add their NS records at the parent, observe behavior during the rollout as delegation changes take effect, and validate again after any removal or rollback so a cleanup step doesn’t leave delegation half-changed.

Here’s what this catches in practice.

When one provider serves stale records, direct checks flag the mismatch before users report it. When one geography sees elevated DNS latency, latency measured from that region surfaces it while other regions look fine.

When a secondary stops receiving zone updates, the drift between providers shows up as diverging answers, which is the clearest early signal that your redundancy has quietly stopped working.

These signals are most useful when you can act on them quickly. With LogicMonitor Digital Experience, the sequence looks like this:

• Detect divergent DNS answers or regional latency from outside your network, using tests that run from the places your users actually connect;
• Determine which authoritative provider or resolution step is affected, so you’re troubleshooting the right layer instead of guessing;
• Correlate that signal with application, network, and infrastructure telemetry so a DNS anomaly connects to the services and users it touches;
• Route the incident with evidence of customer impact, where Edwin AI helps prioritize by business impact and act.

DNS redundancy implementation checklist

Make sure to cross check with this checklist:

• Provider independence: Choose providers that don’t share ownership, infrastructure, or a common control plane.
• Geographic and network diversity: Look for distinct anycast footprints and ASN diversity, while remembering that different ASNs alone don’t guarantee independent upstreams.
• Record and feature parity: Confirm both providers can serve the record types and traffic-steering features your domain relies on.
• Zone transfer support: Verify AXFR and IXFR support if you’re running secondary DNS.
• DNSSEC handling: Plan key management and parent DS-record updates across providers before you sign.
• Parent delegation and registrar: Confirm the NS records at the parent are correct and secure the registrar account separately from provider accounts.
• API and IaC integration: Manage records through APIs and infrastructure-as-code so changes stay consistent and reviewable, and isolate the credentials that pipeline uses.
• TTL strategy: Set TTLs that balance cache efficiency against how fast you need record changes to propagate.
• Change validation: Check that updates landed correctly on every provider after each change.
• Alerting: Alert on divergent answers, elevated latency by region, and failed updates, not just hard outages.
• Tested failover and zone-sync drills: Exercise provider failover and confirm zone synchronization on a schedule, not only after an incident.

Managed secondary and multi-DNS services can carry much of this operational load for you, which is often lighter than running your own authoritative servers.

Who needs multi-provider DNS?

Not every domain needs two providers. A lightweight tiering model helps you match investment to impact.

• Customer-facing production domains: Revenue-critical apps and globally distributed services, where minutes of downtime map to lost sales or breached objectives, are the strongest candidates for a second provider.
• Control-plane and API domains: The names your own systems and integrations depend on can take down internal operations if they fail, so they often warrant multi-provider treatment too.
• Internal domains: Names used only inside the network usually need solid single-provider redundancy, with a second provider reserved for the internal services that operations can’t run without.
• Low-impact marketing properties: Microsites and campaign domains with little downtime cost are usually well served by a single provider running multiple nameservers.

Build resilient DNS with independent providers and continuous validation

DNS redundancy can reduce downtime when your providers and operational dependencies are genuinely independent, and when monitoring confirms that independence holds under real conditions.

Pick the tier that matches your risk, cover the shared dependencies above the authoritative layer, then keep validating the design from where your users connect.

When DNS health connects to the rest of your telemetry, a resolution problem becomes an incident your team can prioritize and act on in one Autonomous IT platform.

FAQs
