Mastering IPM: The Essential Customer Experience Monitoring Framework

See how Internet Performance Monitoring cuts detection time, the four pillars of Internet Resilience, and a real outage caught before it went public.

6–9 minutes
Denton Chikura

NEWSLETTER

Subscribe to our newsletter

Get the latest blogs, whitepapers, eGuides, and more straight into your inbox.

SHARE

The quick download:

Internet Performance Monitoring lets you see outages the way your customers do, and catch them first.

  • Customer experience rests on four pillars: availability, performance, reachability, and reliability, each building on the one below it.

  • Internal metrics can look healthy while DNS, CDN, certificates, or routing quietly break the user experience.

  • In a December 2023 file-sharing outage, outside-in monitoring flagged critical API failures at 4:37 a.m. Pacific, before public reporting.

  • Build a CX monitoring suite around your critical user journeys to shrink MTTD and protect revenue.

Customer experience strongly influences whether users stay or switch. When an application feels slow, breaks partway through a transaction, or fails to load in certain regions, people move on to alternatives. That reality adds pressure on IT and operations teams to see problems the way users see them, from outside the data center and across the Internet path.

This article examines how outside-in Internet Performance Monitoring can reduce Mean Time to Detect (MTTD) and give responders the evidence they need to diagnose incidents more quickly.

This work matters most to ITOps, SRE, network operations, and digital-experience teams responsible for customer-facing services. We’ll start with the foundational elements that any digital service depends on: availability, performance, reachability, and reliability.

The four pillars of monitoring for customer experience

Delivering a consistent customer experience (CX) takes consistency in content delivery, availability, and performance across every market you serve. Users expect applications to respond quickly, and they switch to competitors when those expectations aren’t met.

Maslow’s Hierarchy of Needs describes requirements that build from the basic toward the advanced. Digital services follow a similar layered order: each level depends on the one beneath it.

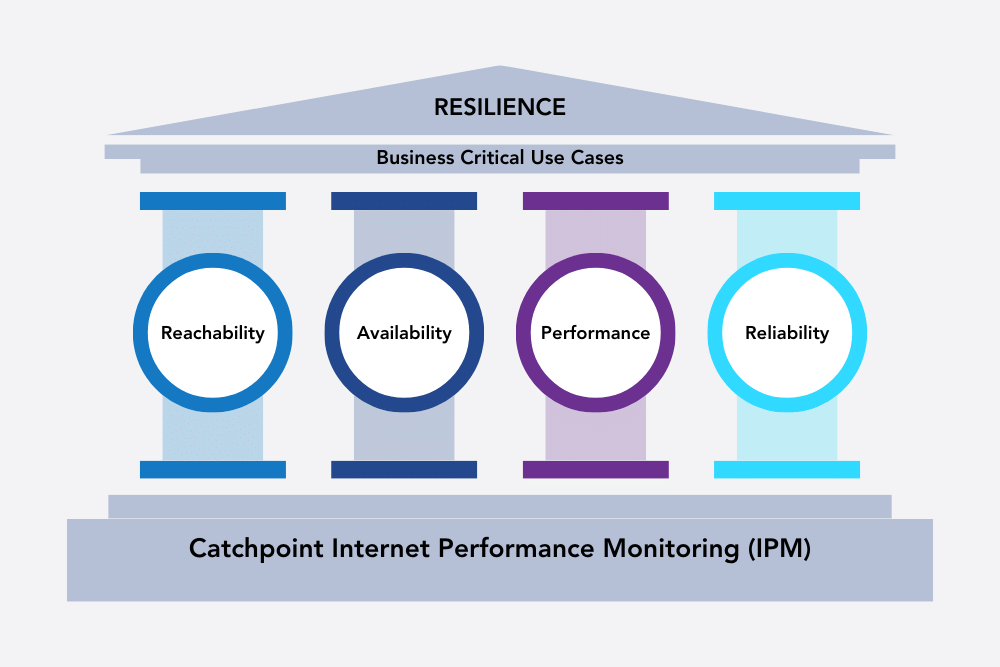

The 4 Pillars of Internet Resilience

Internet Performance Monitoring is built on four core pillars that support a strong customer experience (CX):

  • Availability: True availability goes beyond an “HTTP 200 OK” response. It means every function of an application works as intended. A useful measure is functional transaction success: on an eCommerce site, the images and product descriptions actually load, not just the status code.
  • Performance: The speed and responsiveness of your application. Measure latency or user-journey duration against user expectations and your internal service objectives first. Competitive benchmarks are optional context, not the definition of performance.
  • Reachability: Connection success. User requests reach your server without a hitch, which sets the tone for everything that follows.
  • Reliability: The consistency of availability, performance, and reachability across time and geography, so users get a uniform experience across circumstances.

The pillars build on each other. Your service has to be up and running before anything else matters, so availability comes first. Once it’s available, users expect it to be fast. Then they expect to reach it from anywhere in the world, or at least from every region in your target market. Finally, your service needs to stay consistent in its availability, performance, and reachability over time.

Each pillar plays an important role in the overall customer experience. Monitoring them closely helps teams identify potential incidents earlier and improve how users interact with a service.

Outside-in versus inside-out visibility

A service can report healthy internal metrics while users still hit trouble. DNS resolution, CDN delivery, expired certificates, routing changes, or a failing third-party dependency can all break the experience even when your own servers look fine. Inside-out telemetry describes what’s happening within your environment. Outside-in monitoring runs from the user’s vantage point across the Internet, so you see what real users see. Together they give teams a complete view.

Outside-in monitoring is most effective when it’s centered on critical user journeys: login, search, checkout, upload, and API calls. These are the paths that matter to the business, and they’re the ones you want to monitor continuously.

Implementing a customer experience suite with IPM

Here’s a practical example of an IPM customer experience suite. It gives teams continuous visibility into the user experience and detects potential issues, such as slow website performance or security certificate errors, so they can be addressed before they affect the customer journey.

A well-designed IPM program combines outside-in testing across multiple Internet layers and locations, using established monitoring practices to identify issues before they disrupt critical user journeys.

Here’s what a robust CX monitoring setup might include:

  • Single Object Test: Monitors individual elements like images or scripts to confirm they load correctly.
  • DNS Experience Test: Checks that the DNS resolution process works efficiently, connecting users to your website without delay.
  • Trace Route Test: Shows the path network traffic takes to reach your server, which helps pinpoint potential delays.
  • SSL Test: Checks the validity and expiration of security certificates to prevent warnings that could deter users.
  • Chrome Transaction Test: Simulates user interactions to test complex transactions and application flows.

The frequencies below are illustrative defaults, not universal recommendations. Set test frequency based on business criticality, expected rate of change, your detection objectives, geographic exposure, and how much alert noise a team can tolerate.

Test TypeNode TypeFrequency (in minutes)What it tells you
Single ObjectBackbone5Detects failure or slowdown of a critical dependency.
DNS ExperienceBackbone5Separates name-resolution problems from application problems.
Trace RouteBackbone5Provides path context; should not be treated as definitive proof of packet loss.
SSLBackbone1,440 (once a day)Identifies certificate expiration and validation risk.
Chrome TransactionBackbone60Validates complete business journeys such as login or checkout.

Integrating a suite like this into your monitoring strategy gives you visibility into application performance and availability, DNS resolution, TCP layer connectivity, certificate health, and user transaction functionality, all of which support a strong customer experience.

With an ideal CX setup in mind, let’s look at an incident involving a well-known file-sharing company, and how a similar setup supported rapid detection and a faster MTTD.

Outage case study: what happened

A significant outage struck a prominent file-sharing company on December 15, 2023, lasting from 6:00 AM to 9:11 AM Pacific Time. It affected numerous critical services, including the files tool, APIs, and user logins, and compromised the core functions of uploading and downloading. Many users couldn’t share files or access their accounts, which disrupted both business and personal operations. This is a dated historical example rather than a recent event.

Early detection: the role of IPM

One key factor in how long an outage lasts is how early you detect it.

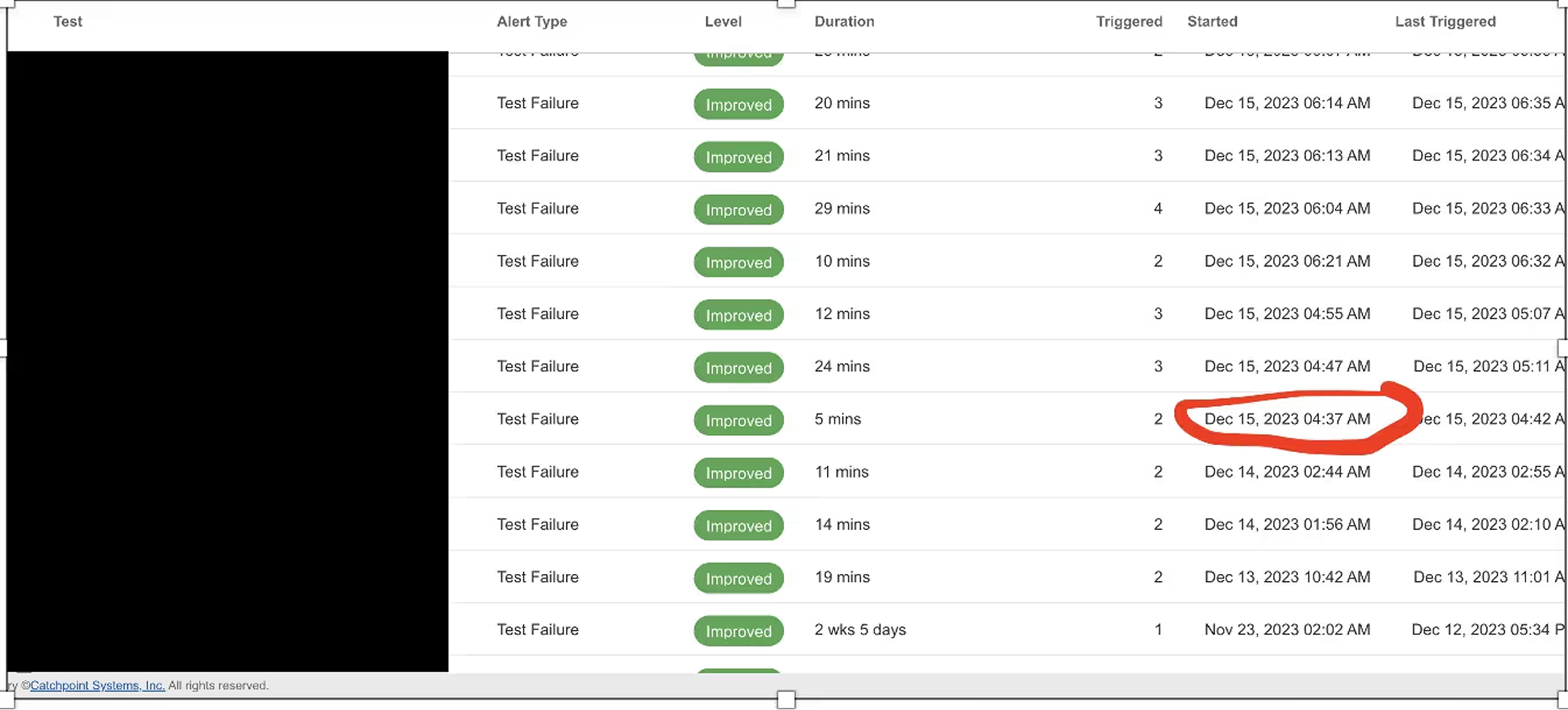

In this case, proactive Internet Performance Monitoring played an important role. Catchpoint, a LogicMonitor company, was running outside-in monitoring that detected the first signs of critical API failures at 4:37 a.m. Pacific Time, before the outage was publicly reported.

Historical monitoring screenshot.

Assessing the alert: distinguishing false alarms from genuine threats

Once an alert arrives, the next question for any team is whether it’s worth waking someone up or whether it’s a false positive, and whether it points to a network error or an application error.

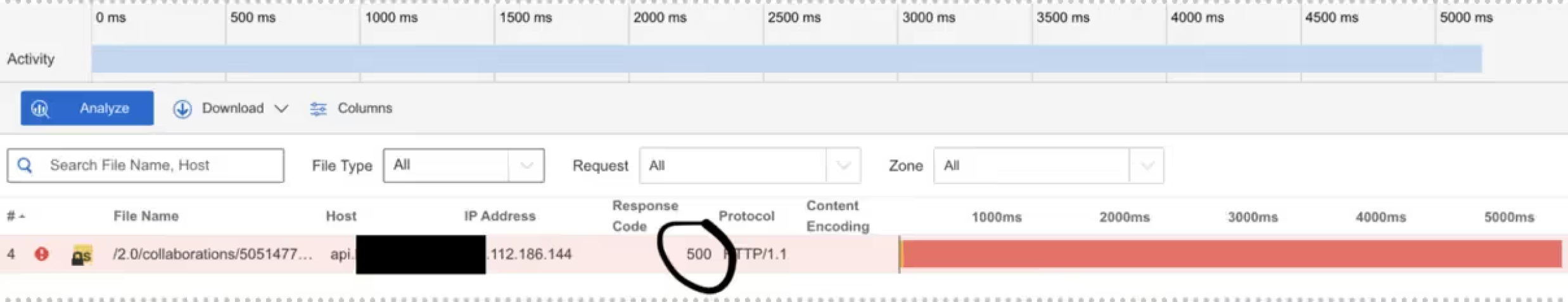

In this case, a consistent pattern of 5XX responses was surfaced. Repeated 5XX responses indicate a server-side or upstream application failure, which signaled a genuine and substantial issue that needed urgent attention.

Historical monitoring screenshot.

Determining the scope of the outage

A critical step for any response team is determining the outage’s extent. Was it only the API, or were other services also affected? The answer determines the response strategy.

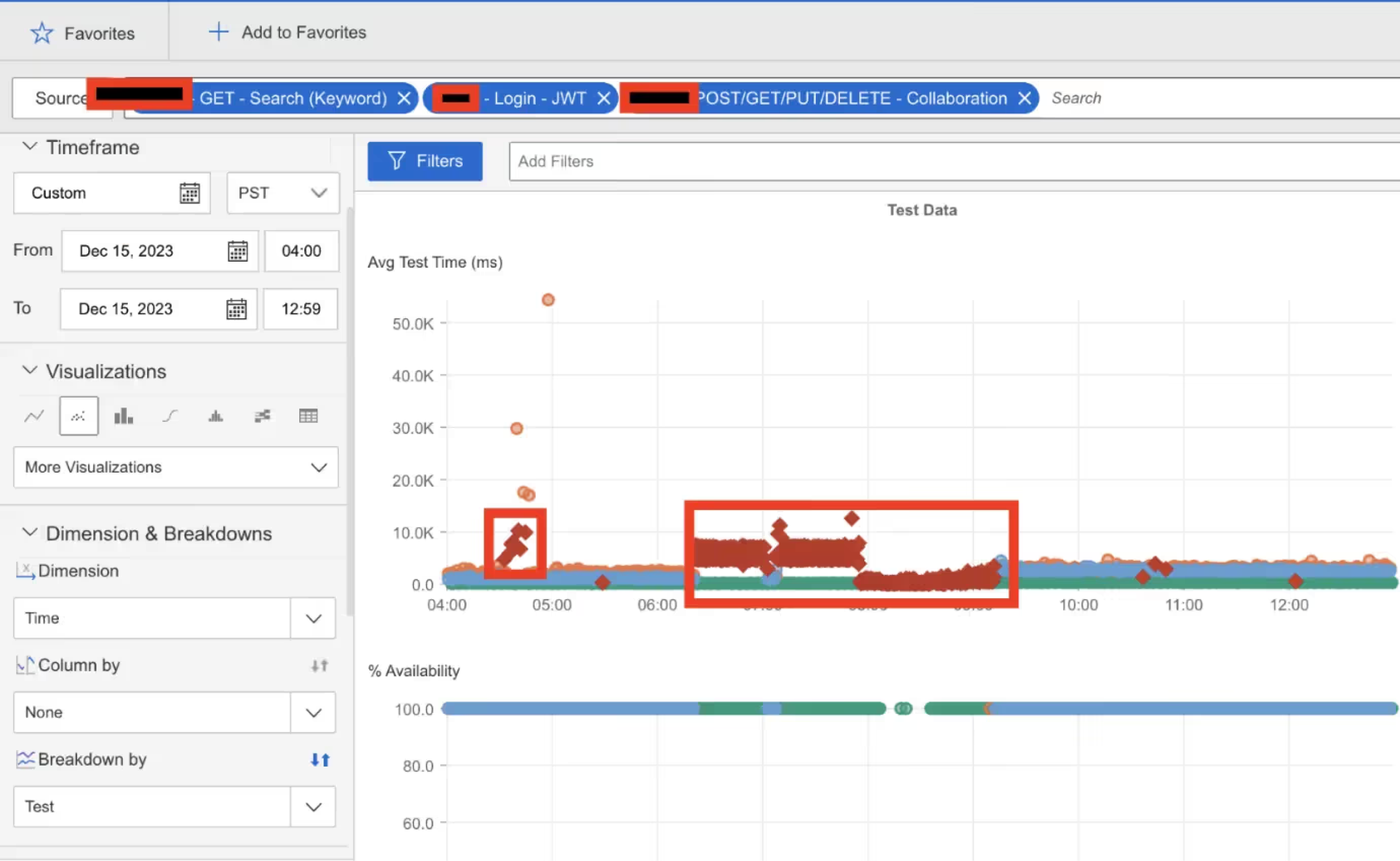

In this scenario, concurrent alerts from multiple services, including APIs, uploads, downloads, and logins, pointed to a far-reaching outage. That context guided the response and recovery efforts.

Historical monitoring screenshot.

Analyzing the potential impact

Outages like this can disrupt operations and carry serious financial consequences. A study by Forrester Consulting found that eCommerce companies can lose significant sums each year because of Internet disruptions.

In that study, 88% of respondents estimated their companies lost over $100,000 due to disruptions in the month before the survey, which, annualized as a simple illustration, points to roughly $1.2 million. And 51% reported losing over $500,000 in the prior month alone.

A robust IPM strategy for CX matters for exactly these reasons.

The outage lasted just over three hours. Earlier detection widens the response window and can reduce the operational and business impact of an outage.

Bringing internet visibility into your operations

Internet Performance Monitoring enables you to determine whether users can reach and use a service. Infrastructure and cloud telemetry explain what’s happening inside the environments that support it. Bringing those perspectives together helps teams move from detecting customer-impacting issues to identifying likely causes and coordinating a faster response.

LogicMonitor brings these perspectives together in a single Autonomous IT platform. LogicMonitor Synthetics and Internet Performance Monitoring provide continuous outside-in visibility into Internet paths and digital experiences, while LM Envision delivers infrastructure and cloud observability by correlating those insights with application and log telemetry. Together with Edwin AI, teams gain the context to investigate incidents faster and understand how Internet-facing issues affect the services behind them.

Building this kind of visibility is also an important step toward safeguarding revenue. By continuously validating critical user journeys and understanding how Internet conditions affect service delivery, teams are better equipped to meet service level agreements, reduce customer impact, and protect the business from the cost of outages.

Give your team outside-in visibility into every critical user journey.

LogicMonitor combines outside-in Internet Performance Monitoring with infrastructure observability, so you can detect customer-impacting issues sooner and resolve them faster.

FAQs

What is the difference between outside-in and inside-out monitoring?

Inside-out telemetry reports what is happening within your own environment, such as server and application health. Outside-in monitoring runs from the user’s vantage point across the Internet, capturing issues like DNS, CDN, and certificate failures that internal metrics miss. Used together, they give teams a complete view of the customer experience.

What are the four pillars of Internet Resilience?

The four pillars are availability, performance, reachability, and reliability. Availability confirms every function works, performance measures speed against user expectations, reachability confirms users can connect, and reliability keeps all three consistent across time and geography. Each pillar depends on the one beneath it.

How does IPM reduce Mean Time to Detect (MTTD)?

IPM runs continuous outside-in tests across Internet layers and locations, so it surfaces failures before they are publicly reported. In the December 2023 file-sharing outage, monitoring caught critical API errors at 4:37 a.m. Pacific, ahead of public reports. Earlier detection widens the response window and limits business impact.
