Event-Driven Ansible Integration Setup

Last updated on 26 April, 2024

You can integrate LogicMonitor with Event-Driven Ansible to take remediation steps for an alert. For example, when a web server is down, the Ansible event can restart the web server when it receives alert from LogicMonitor.

Setup of LogicMonitor’s alert integration for Event-Driven Ansible involves the following steps:

  1. Configuring Event-Driven Ansible from LogicMonitor Portal
  2. Generating an Ansible Token
  3. Installing and Configuring LogicMonitor Plugin for Event-Driven Ansible

Configuring Event-Driven Ansible from LogicMonitor Portal

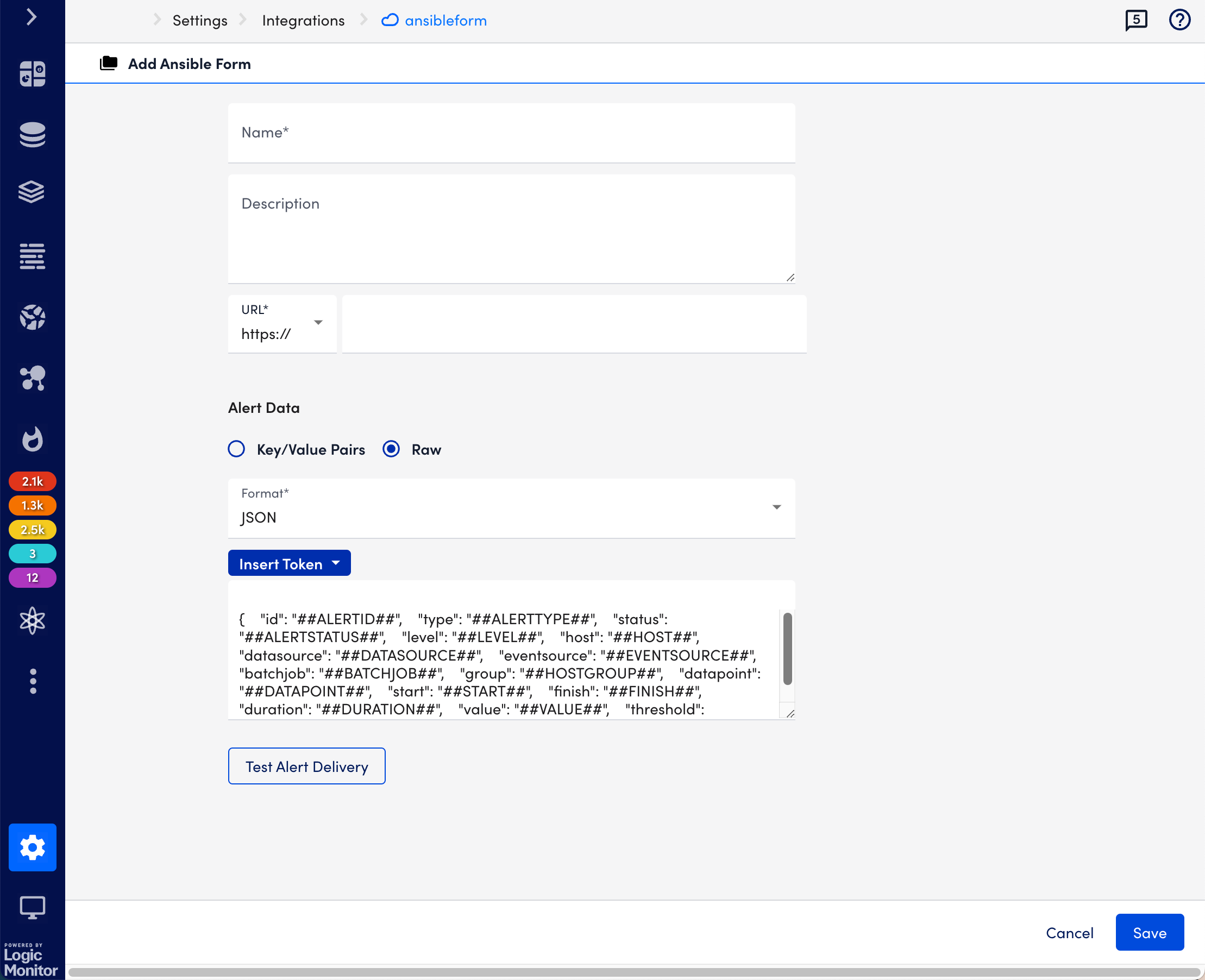

  1. In LogicMonitor, navigate to Settings > Integrations.
  2. Select Add Integration.
  3. From the Add Integration pane, under Automation Integration, select Ansible.
  4. Enter a name and description for the event-driven Ansible integration.
  5. Enter the URL at which the webhook event source is hosted.
  6. From Alert Data, select key and value pairs or tokens to customize the alert message.
    • Select Key/Value Pairs, select Add Record, provide key Name and Value, and then select Apply.
    • Select Raw, select Insert Tokens, and theninclude the tokens you want for the alert message. The following tokens are available:
      • ##ADMIN##
      • ##ADMIN.PHONE##
      • ##ADMIN.EMAIL##
      • ##ADMIN.PAGER##
      • ##ALERTTYPE##
      • ##ALERTSTATUS##
      • ##MESSAGE##
      • ##ALERTID##
        For more information, see Tokens Available in LogicModule Alert Messages.
        • The Alert message is sent only in JSON format.
        • By default, as an example, some tokens are included in the Alert Data message section. You can edit this section by adding tokens using the Insert Token button.
  7. Select Save.

Generating an Ansible Token

To generate an Ansible token, you must reopen the integration you have configured. For more information, see Configuring Event-Driven Ansible from LogicMonitor Portal.

  1. Navigate to Settings > Integration, and then select Manage associated with the Ansible integration you have configured.
  2. Select Generate Ansible Token to generate Ansible token.
  3. Copy the generated token. The token needs to be copied and stored on the Ansible host so that it can be verified.

Recommendation: Ensure you securely store and transfer the Ansible token from your LogicMonitor portal to your Event-Driven Ansible plugin instance. You cannot access the generated Ansible Token after closing the message.

Installing and Configuring LogicMonitor Plugin with Event-Driven Ansible

To install and configure LogicMonitor plugin with Event-Driven Ansible, you:

  • Must generate an Ansible token after configuring Event-Driven Ansible from LogicMonitor portal. For more information, see Generating Ansible Token.
  • Must install Ansible Rulebook on your system. For more information, see Installing Ansible Rulebook.

Use the following commands to install and configure the LogicMonitor plugin with Event-Driven Ansible.

1.Install Logicmonitor Ansible plugin.

ansible-galaxy collection install logicmonitor.integration

2. Create a file secure_vars.yml. You need to add the Ansible token you have generated after configuring Event-Driven Ansible from LogicMonitor Portal. For more information, see Generating an Ansible Token.

ansible_token: [copied token]

3. Encrypt the file using Ansible vault.

ansible-vault encrypt secure_vars.yml
New Vault password:
Confirm New Vault password:

Note: You should remember the password used for encryption.

4. Create a rulebook or use one of the provided rulebook.

- name: webhook alert Events
  hosts: localhost
    - logicmonitor.integration.webhook:
        port: 5000
        vault_pass: '{{vault_pass}}'
        vault_path: '{{vault_path}}'
    - name: start collector
      condition: event.payload.type == "agentDownAlert"
          name: logicmonitor.integration.start_lm-collector

5. Pass in the required arguments.

    Arguments can be passed directly in rulebook or as a variable from file or environment. For more information, see Usage in the Ansible documentation.

6. Run the plugin with the following command:

  • Ansible rulebook sample command with variables from environment variable using option [“–env-vars vault_pass”]:
    ansible-rulebook --rulebook rulebooks/AgentDownMitigation.yml -i rulebooks/inventory.yml --verbose --env-vars vault_pass
  • Ansible rulebook sample command without passing environment variable :
    ansible-rulebook --rulebook rulebooks/AgentDownMitigation.yml -i rulebooks/inventory.yml

Once you have configured the plugin, you will receive the alerts for the Ansible events source.
