Configuring Collector to Communicate with HTTP Proxies
Last updated on 06 September, 2024If your environment does not allow the Collector to directly connect with the LogicMonitor data centers, you can configure the Collector to communicate through an HTTP proxy.
Updating SSL and Proxy Settings
By default, collectors are not configured to use proxies. To communicate with HTTP proxies, you need to make updates to several proxy settings located in the collector’s agent.conf
file. For detailed instructions on editing the agent.conf file, see Editing the Collector Config Files.
Once updated, the new settings should look similar to these:
# SSL & Proxy settings
ssl.enable=true
proxy.enable=true
proxy.host=10.0.0.54
proxy.port=8080
proxy.user=domain\username
proxy.pass=password
proxy.exclude=
proxy.global=false
proxy.pass.isencrypted=false
These new settings designate the following:
ssl.enable=true
Indicates that the collector will make outbound connection using SSL.proxy.enable=true
Indicates that the collector will use these settings.proxy.host=
Indicates the IP address of the proxy server.proxy.port=
Indicates the port the proxy server uses.proxy.user=
Indicates the username the collector uses when connecting to the proxy.proxy.pass=
Indicates the password the collector uses when connecting to the proxy.proxy.pass.isencrypted=
Indicates if the proxy password is encrypted or not.
Note: The settings specified above reflect a Windows-based proxy requiring authentication. Linux collectors support only basic authentication. Windows collectors support NTLM and other native windows authentication methods.
Changing Proxy Password
If a proxy server has password-based authentication, its credentials are stored in the proxy.user
and proxy.pass
fields. The proxy password is encrypted. To indicate the encryption, the proxy.pass.isencrypted
is set to true
. You can set proxy.pass.isencrypted= false
if you want to change the proxy password.
Note: This setting is available in collector version 30.104 or later.
- Navigate to Settings > Collectors.
- Under the Collectors tab, select the collector you want to configure.
- Select the More option and then select Collector Configuration.

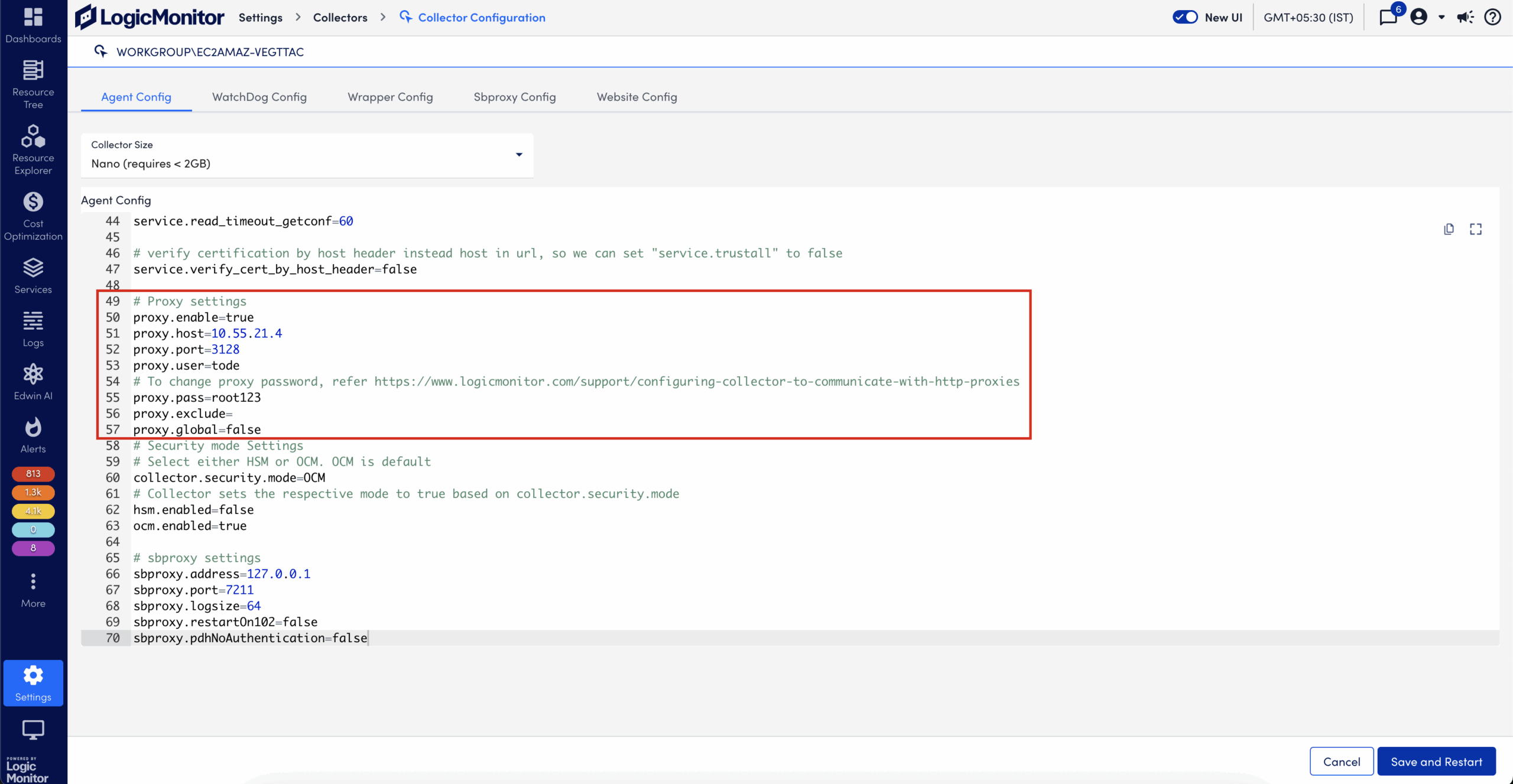

On the Collector Configuration page, settings under the Agent Config tab are displayed. - Scroll to locate the SSL and Proxy settings.
- Enter a new password in plain text in the
proxy.pass
field. - Set the
proxy.pass.isencrypted
value tofalse
. - Select Save and Restart.
After the restart, observe that the password is encrypted and theproxy.pass.isencrypted
field is set totrue
.
Troubleshooting Collector Proxy Configuration
We have highlighted some common issues experienced (and how to resolve them) when configuring collectors to be used with HTTP proxies.
Issue: Proxy Authentication Required
When the collector is configured to use a proxy that requires basic authentication, the collector may throw the following exception:
[MSG] [WARN] [main::controller:main] [Controller2._initConfiguration:461] Unexpected status encountered from server. Will retry., CONTEXT=retry=30s, statusCode= 500, errMsg=Unable to tunnel through proxy. Proxy returns "HTTP/1.1 407 Proxy Authentication Required"
In this case, you will want to add the following configuration to the collector’s wrapper.conf:
wrapper.java.additional.16=-Djdk.http.auth.tunneling.disabledSchemes=
Issue: Invalid SSL Certificate
If a collector does not get a valid SSL certificate issued directly from LogicMonitor, it will fail to properly start. In the below example, all SSL certificates in the client environment were being intercepted and reissued using special security software (example, Blue Coat Proxy).
[03-26 15:53:03.222 EDT] [MSG] [INFO] [statusmonitor:::] [StatusListener$1.run:106] Receive peer request, CONTEXT=command=keepalive, charset=windows-1252, peer=/***.***.***.***:******
[03-26 15:53:03.268 EDT] [MSG] [WARN] [statusmonitor::scheduler:] [PropertyFilePersistentHandler._load:94] task file not found, CONTEXT=filename=C:\Program Files (x86)\LogicMonitor\Agent\conf\persistent_task.conf, EXCEPTION=C:\Program Files (x86)\LogicMonitor\Agent\conf\persistent_task.conf (The system cannot find the file specified)
java.io.FileNotFoundException: C:\Program Files (x86)\LogicMonitor\Agent\conf\persistent_task.conf (The system cannot find the file specified)
at java.io.FileInputStream.open0(Native Method)
at java.io.FileInputStream.open(FileInputStream.java:195)
at java.io.FileInputStream.<init>(FileInputStream.java:138)
at java.io.FileInputStream.<init>(FileInputStream.java:93)
at com.santaba.common.util.scheduler.impl.PropertyFilePersistentHandler._load(PropertyFilePersistentHandler.java:88)
at com.santaba.common.util.scheduler.impl.PropertyFilePersistentHandler.<init>(PropertyFilePersistentHandler.java:30)
at com.santaba.common.util.scheduler.Schedulers.newPersistentScheduler(Schedulers.java:17)
at com.santaba.agent.collector3.CollectorDb._newScheduler(CollectorDb.java:172)
at com.santaba.agent.collector3.CollectorDb.<init>(CollectorDb.java:68)
at com.santaba.agent.collector3.CollectorDb.<clinit>(CollectorDb.java:65)
at com.santaba.agent.agentmonitor.StatusListener._getAgentStatusResponse(StatusListener.java:279)
at com.santaba.agent.agentmonitor.StatusListener$1.run(StatusListener.java:117) /
[03-26 15:53:03.947 EDT] [INFO] [1] [default] [controller] [Controller2._initHttpService:469] Agent starting with ID - 00baae57-3971-4239-9610-b512aae9c21csbagent
[03-26 15:53:04.232 EDT] [MSG] [INFO] [main::controller:main] [SSLUtilities.checkCertificates:160] Invalid or wrong SSL Certificates found, CONTEXT=info=Found total 2 certificates:
Subject: CN=*.logicmonitor.com, OU=Domain Control Validated
Issuer: CN=SSLInterception87
Type: X.509
SHA1: 9a:a6:ff:33:85:cc:13:4c:3a:13:11:77:5c:ef:5e:a7:74:65:6b:de
MD5: 61:35:08:b5:ec:71:a2:ae:05:c4:7f:54:f1:aa:6f:ad
Valid from: 2017-04-19 10:02:01 -0400
Valid to: 2020-06-18 17:33:09 -0400Subject: CN=SSLInterception3
Issuer: CN=BillyBob's-CA, DC=slhn, DC=org
Type: X.509
SHA1: 6b:a8:1f:61:7b:5d:f0:e4:ee:7e:6a:1b:bb:18:de:67:be:5c:44:1d
MD5: d0:fc:64:da:6f:9b:1f:8d:1a:52:64:dc:41:da:e7:1c
Valid from: 2017-08-09 15:08:18 -0400
Valid to: 2021-10-03 08:53:12 -0400 */
[03-26 15:53:04.232 EDT] [MSG] [WARN] [main::controller:main] [Controller2._initConfiguration:322] SANTABA SERVER ceriticates not trusted, CONTEXT=Host=generic-customer.logicmonitor.com, port=443
Solution A (Preferred)
Have the local administrator add the SSL certificate to your allow list so that it comes into the network unmodified by a proxy/firewall. This is the preferred option because it preserves security.
Solution B
Change the collector configuration setting from:
EnforceLogicMonitorSSL=true
to:
EnforceLogicMonitorSSL=false
Removing SSL enforcement lowers the security of the connection between your collector and LogicMonitor and, for this reason, should be carefully considered before implementing.
