Alert Properties for DiagnosticSource and RemediationSource Scripts

The Groovy or PowerShell script that you specify in a DiagnosticSource and RemediationSource runs on a Collector and has access to resource-level host properties such as system.displayName and custom resource properties.

To provide context about the alert that triggered the DiagnosticSource or RemediationSource, you can use alert properties in the script. When LogicMonitor runs a Groovy script, it provides alert properties to the script using the alertProps variable. This provides the script with alert information such as the datapoint that breached the threshold, the datapoint value when the alert triggered, the instance that generated the alert, the DataSource associated with the alert, and other relevant alert metadata such as alert ID, start time, or threshold. You can incorporate this data into conditional logic for context-driven automated diagnostics and remediation.

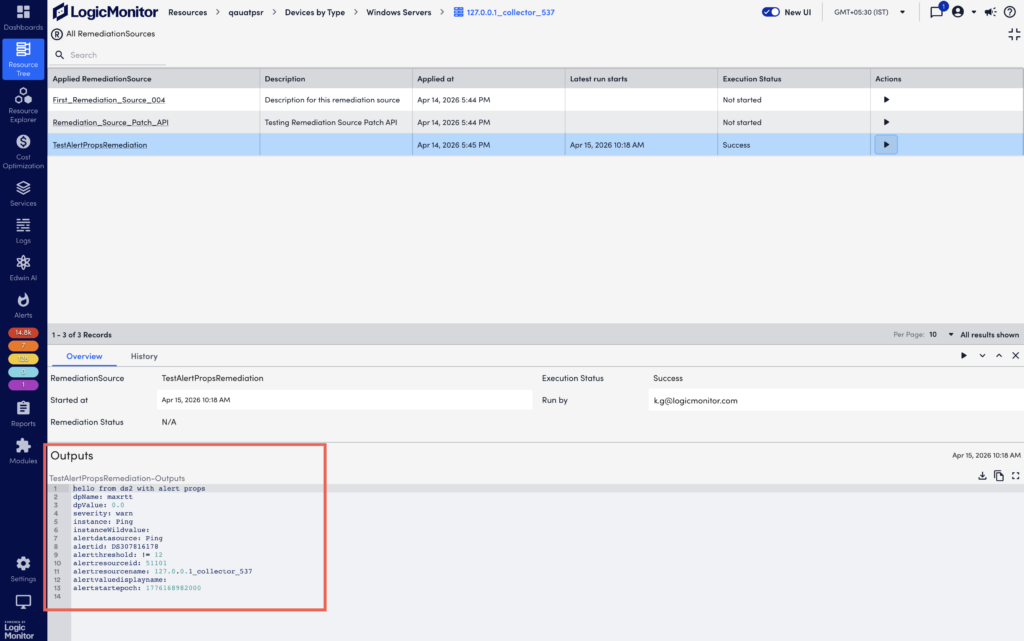

In the following image, you can view the output of a RemediationSource run result with available alert properties for the resource:

Alert Properties for DiagnosticSource and RemediationSource Scripts

When configuring a DiagnosticSource or RemediationSource Groovy script, you can use the following set of standard alert properties:

Alert Property Access

Alert properties provide contextual information about the alert that triggered the script. You can access these properties in the following ways:

• Inline Token Substitution—Use ##ALERT.*## tokens to insert alert property values directly into the script before execution.
• Runtime Variable Access—Use the alertProps runtime variable to retrieve alert property values programmatically during script execution.
• Manual Script Execution—Understand how alert properties behave when a DiagnosticSource or RemediationSource is run manually without alert context.

Inline Token Substitution

You can use inline token substitution in Groovy and PowerShell scripts. It uses the same template ##TOKEN## that is used for host properties. For example, ##SYSTEM.HOSTNAME##.

def datapointName = "##ALERT.DATAPOINT##"
def currentValue  = "##ALERT.DATAPOINT.VALUE##"
def severity      = "##ALERT.SEVERITY##"

Runtime Variable Access

You can use runtime variable access in the Groovy script.

def dpName   = alertProps.get("alert.datapoint")
def dpValue  = alertProps.get("alert.datapoint.value")
def severity = alertProps.get("alert.severity")
def instance = alertProps.get("alert.instance")
println "Alert on ${dpName} = ${dpValue} (${severity}) for instance ${instance}"
if (dpValue.toDouble() > 90.0) {
    // perform targeted remediation based on actual alert value
}

Manual Script Trigger from Resources

When you manually run a DiagnosticSource or RemediationSource without alert context, the alertProps in the Groovy script do not contain alert property values.

Design your script to gracefully handle cases where alert context is unavailable.

if (alertProps.containsKey("alert.datapoint")) {
    // alert-aware execution path
} else {
    // fallback for manual execution
}
