Internal Web Checks using Groovy Scripts with LM Uptime

You can execute your Internal Web Checks using a groovy script to collect and process HTTP data. Internal Web Checks with at least a single step that runs using Groovy script consist of a Step Request script and a Step Response processor. Step Request can send a GET request to collect the authenticating token for the site and share the token, while the Step Response authenticates into the site.

The following are some of the benefits of creating Internal Web Checks using Groovy scripts:

• Flexible authentication—Works well with form-based authentication that uses dynamic tokens
• Context sharing—Pass authentication tokens between steps for seamless session continuity

API Commands for Groovy Scripts

The request script uses the Groovy API to get an HTTP response, which the response script then parses to apply post-processing methods such as checking the status or evaluating the response body.

API Commands for a Request Groovy Script

The following table lists the API commands you may use in your request Groovy script:

API	Return type	Description	Default value (if applicable)
setAuthType(AuthType authType)	LMRequest	Set the Authentication Type
setUsername(String username)	LMRequest	Set the Authentication username
setPassword(String password)	LMRequest	Set the Authentication password
setDomain(String domain)	LMRequest	Set the Authentication Domain (only for NTLM Authentication)
followRedirect(boolean)	LMRequest	Specifies whether or not redirects should be followed	True
addHeader(String name, String value)	LMRequest	Add the HTTP headers
userHttp1_0()	LMRequest	Specifies if HTTP/1.0 protocol version is used	False
userHttp1_1()	LMRequest	Specifies if HTTP/1.1 protocol version is used	True
needFullpageLoad()	LMRequest	Specifies if the full page needs to be loaded	False
setContext(String name, Object value)	LMHttpClient	Set the context for the next scripts
getContext(String name)	Object	Get the context of the previous scripts
request(LMRequest)	LMHttpClient	Set the HTTP request parameters
get()	StatusCode	GET the Request and Return status.
get(URL)	StatusCode	GET the Request and Return status.
head()	StatusCode	Check if the URL exists
post(URL, PostDataType, String PostData)	StatusCode	Post the HTTP data
setProxy(String hostname, int port, String schema)	LMRequest	Set the HTTP proxy. Schema can only be HTTP or HTTPS
setProxy(String hostname, int port, String schema, String proxyUsername, String proxyPassword)	LMRequest	Set the HTTP proxy along with credentials.

API Commands for a Response Groovy Script

The following table lists the API calls you may use in your response Groovy script:

API Command	Return type	Description
getStatus()	Integer	Return the HTTP status code
getReasonPhase()	String	Return the HTTP Reason Phase
getProtocolVersion()	String	Return the HTTP Protocol Version
getHeaders()	Map (String, List [String])	Return all the headers
getHeader(String name)	List	Return the header value with name. If the header does not exist, a “null” response will be returned. Note that the name is case sensitive
getBody()	String	Return the HTTP Response Body
statusMatch(int expected)	StatusCode	Check if the status is as expected. If so, this will return STATUS_OK. Otherwise it will return STATUS_STATUS_MISMATCH
regexMatch(String pattern)	StatusCode	Check if the regex pattern matches the HTTP Response Body. If it fails, return STATUS_CONTENTS_MISMATCH
globMatch(String pattern)	StatusCode	Check if the regex pattern matches the HTTP Response Body. If it fails, return STATUS_CONTENTS_MISMATCH
plainTextMatch(String pattern)	StatusCode	Check if the HTTP Response Body contains the plain text. If it fails, return STATUS_CONTENTS_MISMATCH
jsonMatch(String path, String expectValue)	StatusCode	Check if the path’s JSON result matches the expect value. If it fails, return STATUS_CONTENTS_MISMATCH
PathMatch(String path, String expectValue)	StatusCode	Check if the string’s path matches the expect value. If it fails, return STATUS_CONTENTS_MISMATCH
keyValueMatch(String key, String expectValue)	StatusCode	Check if the returned key/Values match the expect value. If it fails, return STATUS_CONTENTS_MISMATCH
setContext(String name, Object value)	void	Sets the context for the next stages of your script
getContext(String)	Object	Return the context set in a previous script stage

Status Codes

Code	Value	Description
STATUS_OK	1	Data collection functioned as expected
STATUS_MISMATCH	11	The HTTP response status does not match
STATUS_CONTENTS_MISMATCH	12	The HTTP Request did not return expected HTTP Response body

Requirements for Creating Internal Web Checks using Groovy Scripts with LM Uptime

To create internal web checks using groovy scripts, you need the following:

• A user with “Manage” permission for Resources. For more information, see Resource Role Permissions.
• LM Uptime license edition

Creating Internal Web Checks using Groovy Scripts with LM Uptime

1. In LogicMonitor, navigate to Resource Tree > .
2. In the Uptime section, select Internal Web Check.
3. Select the Basic and enter the required details.
4. Select the Settings tab and do the following:
   1. In the Default Root URL section, select http:// or https:// protocol depending on your web server settings, and enter the website domain to which your Web Check request will be sent.
   2. In the Step One URL Path field, enter the first path that should be tested for your website. Enter the path relative to the website domain (For example, /folder/page.htm).
   3. In the Request section, select the Script tab.
   4. Toggle on the Use Groovy Script for Request (ignore Settings) switch.
   5. Select Generate Script from Settings to have LogicMonitor auto-generate request scripts based on those settings.
      The following Groovy syntax would be used in the first step of an Internal Web Check for a site using basic authentication:
      import com.logicmonitor.service.groovyapi.AuthType; import com.logicmonitor.service.groovyapi.LMRequest; LMRequest request = new LMRequest(); request.setAuthType(AuthType.BASIC) .setUsername("username") .setPassword("password") .followRedirect(false) .useHttp1_0() .needFullpageLoad(true); String jsonData = "{\"name\": \"value\"}" return LMHttpClient.request(request) .post(JSON, jsonData);

      For example, setContext() response:
      StatusCode status = LMResponse.statusMatch(200); LMResponse.setContext("body", Response.getBody()); return status;

      For example getContext() response:

      return LMResponse.plainTextmatch(Response.getContext("exampletext"))

      For example post(PostDataType, String PostData) response:
      import static com.logicmonitor.service.groovyapi.StatusCode.*; import static com.logicmonitor.service.groovyapi.PostDataType.*; String jsonData = "{\"name\": \"value\"}"; return LMHttpClient.post(JSON, jsonData);

      For example request(LMRequest) response:

      import com.logicmonitor.service.groovyapi.AuthType; import com.logicmonitor.service.groovyapi.LMRequest; LMRequest request = new LMRequest(); request.setAuthType(AuthType.BASIC) .setUsername("username") .setPassword("password") .followRedirect(false) .useHttp1_0() .needLoadFullPage(false); String jsonData = "{\"name\": \"value\"}" return LMHttpClient.request(request) .post(JSON, jsonData);

   6. Select the Script tab under the Response section.
   7. Toggle on the Use Groovy Script for Response (ignore Settings) switch.
   8. Select Generate Script from Settings to have LogicMonitor auto-generate response scripts based on those settings.
      For example, In the event that you wanted to verify a response status of “302” for a site, use the following request:

      import com.logicmonitor.service.groovyapi.LMRequest; LMRequest request = new LMRequest(); return LMHttpClient.request(request.followRedirect(false) .get());

      You would write your response script as follows:
      return LMResponse.statusMatch(302);

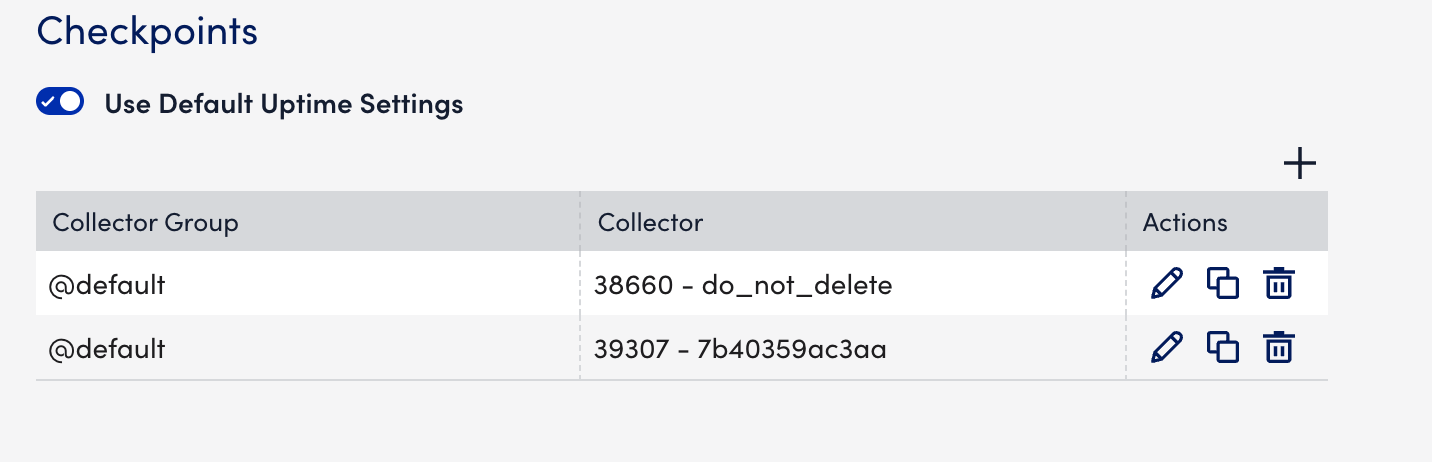

5. Select the Checkpoints tab step and specify the Collectors that will send the checks.
   The Use Default Uptime Settings toggle is selected by default.


6. Select the Alert Triggering tab and enter the required details.
7. Select Save.
    The internal web check is added to the resources.
